TEXTILE SPIRALS

WHICH SPIRAL SHOULD I USE?

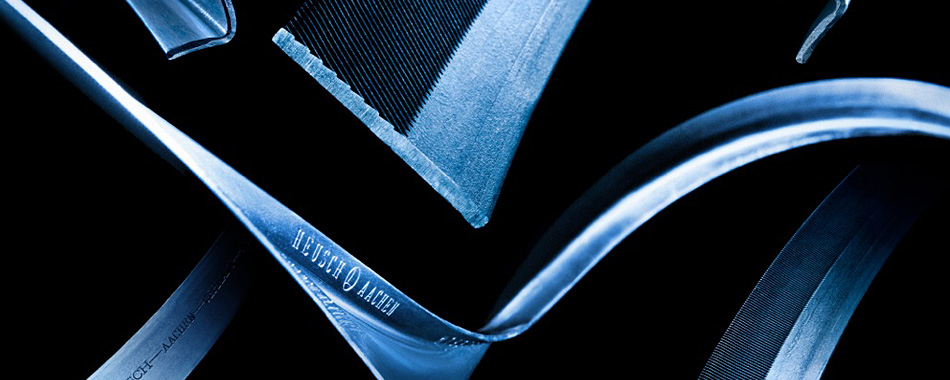

HEUSCH manufactures various textile spirals.

For the perfect fit of the spiral according to your requirements please select from the following 4 basic properties

TYPE OF SPIRAL

CONCAVE - Or CAULKED SPIRAL?

For most materials we recommend the concave spiral invented by us. It distinguishes itself by its optimal cutting angle of 25°.The caulked spiral is only recommended for particularly heavy products (carpet).

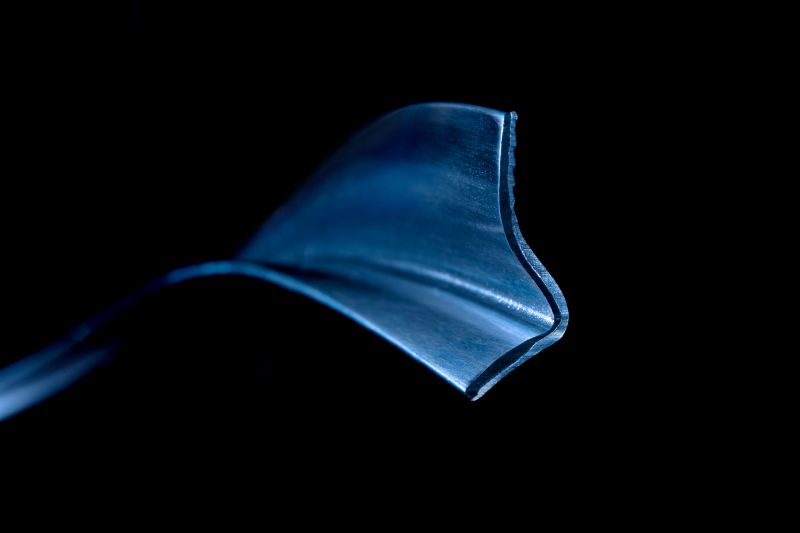

CONCAVE SPIRAL

consistenly optimal cutting angle of 25°

1,5 MM 2 MM
MATERIAL THICKNESS for light to medium-heavy products for heavy products
FILE CUT no file cut, 13, 15, 18 9, 11, 13
LENGTH any length is possible within this range: 250 up to 8000 mm any length is possible within this range: 250 up to 8000 mm

Machine manufacturer

Anhui Laifu, Anmak, Bitexma, BROMA, Capdevilla, Caru, Changzhou KunLiang, Changzhou Machinery Works, Changzhou ShengWang, Changzhou TongYue Machinery, Chien Lun, Cogliati, Comet, Crane Valve, Curtis & Marble, Danti Paolo, Diriler, Fontanet, GEMATEX, Gessner, Guido Regis, Haining FangJi Machinery Works, Hämmerle, Hergert/Holthausen, Huang, Ikuang Machine Works, Iwakura, James Bailey, Jinan Sinotech, Kettling & Braun, Lafer, Lamperti, Lian Yun Gang, Lidem, M-tec, Mario Crosta, Menschner, Mortamet, MTW, JiangSu, Parks & Woolson, PengLeng, Peyman Machine Isfahan, Raxhon, Sai Sukritii International, Sara Tex, Sellers, Shanghai Good Grinding, Shaterian, Sistig, Sucker/Müller, Surber, Tacome, TianJin HuaDi LianXin, TMT, Torres Maquinaria Textil, Vollenweider, WuXi Xin Yi, Xetma, ...

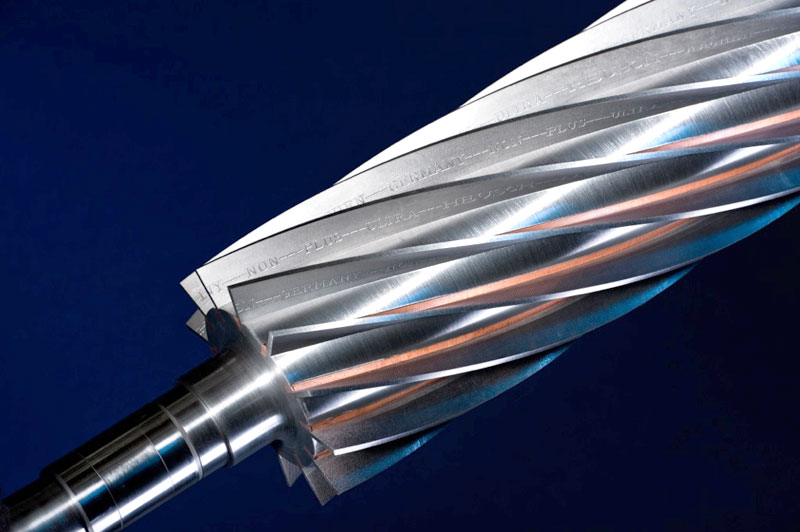

CAULKED SPIRAL

particularly high stability and shearing performance, therefore ideal for heavy shearing products, e.g. carpet, consistent cutting angle of 10°

2,1 MM 2,5 MM
MATERIAL THICKNESS for light to medium-heavy products for heavy products
FILE CUT no file cut, 13, 15, 18 9, 11, 13
LENGTH any length within this range is possible: 50 up to 8000 mm any length within this range is possible: 50 up to 8000 MM

Machine manufacturer

Anhui Laifu, Anmak, Bitexma, BROMA, Capdevilla, Caru, Changzhou KunLiang, Changzhou Machinery Works, Changzhou ShengWang, Changzhou TongYue Machinery, Chien Lun, Cogliati, Comet, Crane Valve, Curtis & Marble, Danti Paolo, Diriler, Fontanet, GEMATEX, Gessner, Guido Regis, Haining FangJi Machinery Works, Hämmerle, Hergert/Holthausen, Huang, Ikuang Machine Works, Iwakura, James Bailey, Jinan Sinotech, Kettling & Braun, Lafer, Lamperti, Lian Yun Gang, Lidem, M-tec, Mario Crosta, Menschner, Mortamet, MTW, JiangSu, Parks & Woolson, PengLeng, Peyman Machine Isfahan, Raxhon, Sai Sukritii International, Sara Tex, Sellers, Shanghai Good Grinding, Shaterian, Sistig, Sucker/Müller, Surber, Tacome, TianJin HuaDi LianXin, TMT, Torres Maquinaria Textil, Vollenweider, WuXi Xin Yi, Xetma, ...

FIXING THE SPIRAL

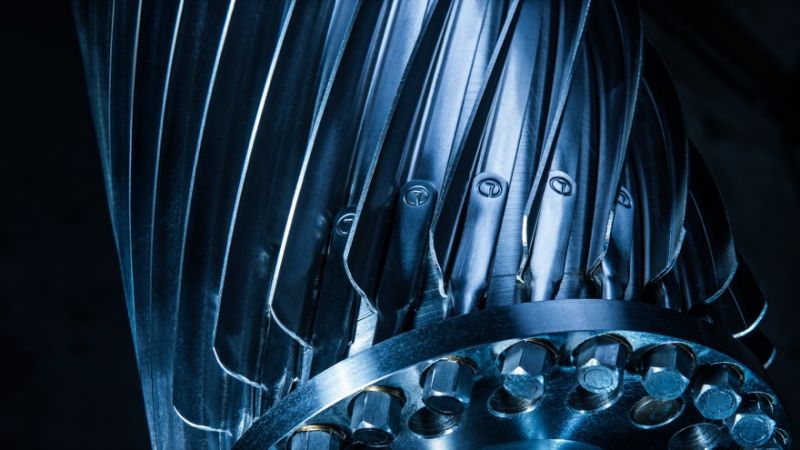

SPIRAL WITH STRETCH-SCREW

Consistenly optimal cutting angle: 25° APPLICATION: for light textiles such as cotton, silk..

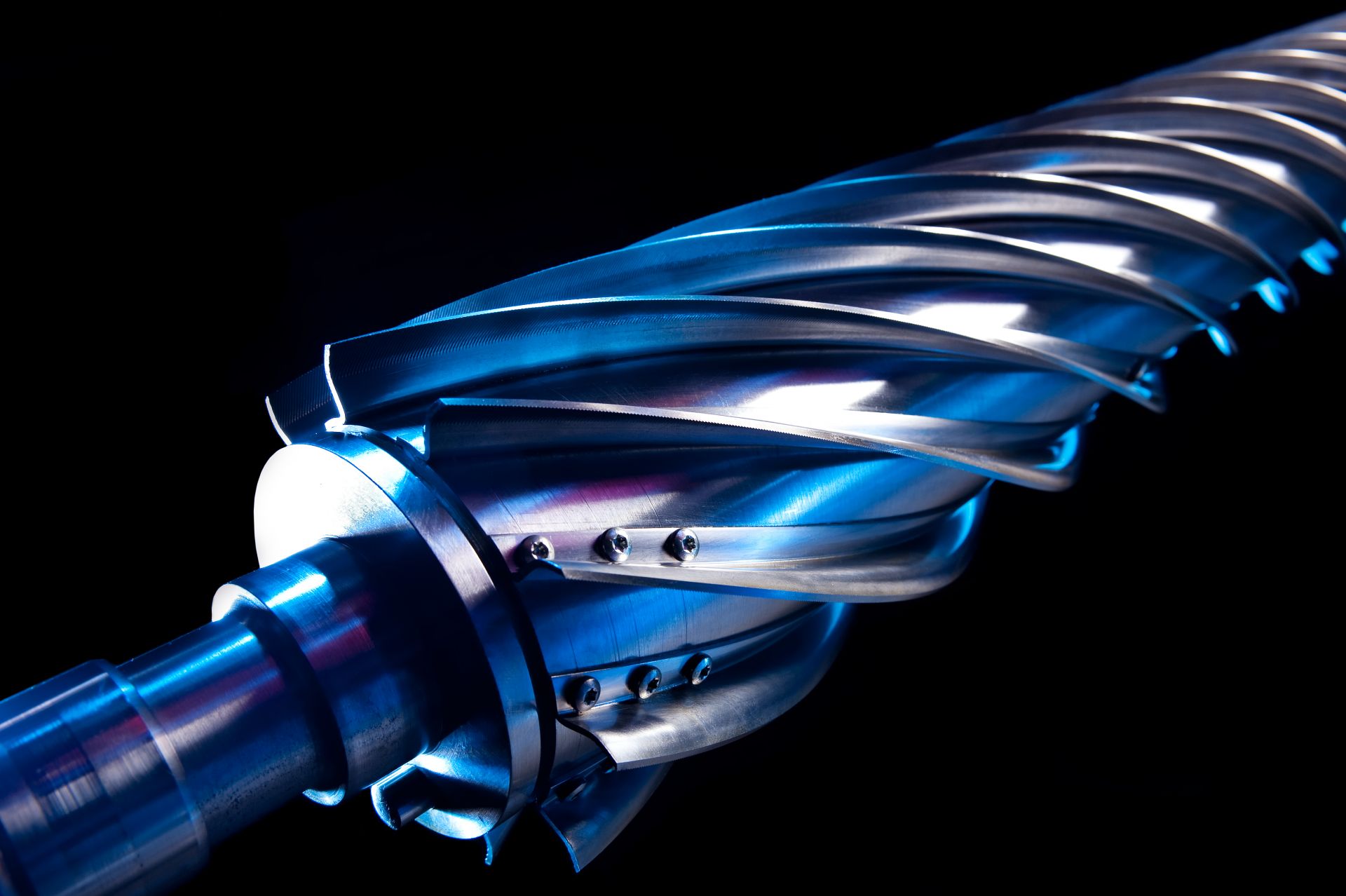

SPIRAL WITHOUT STRETCH-SCREW

Consistently optimal cutting angle: 25° APPLICATION: for heavy products, tight fibres: carpets, micro-fibre material

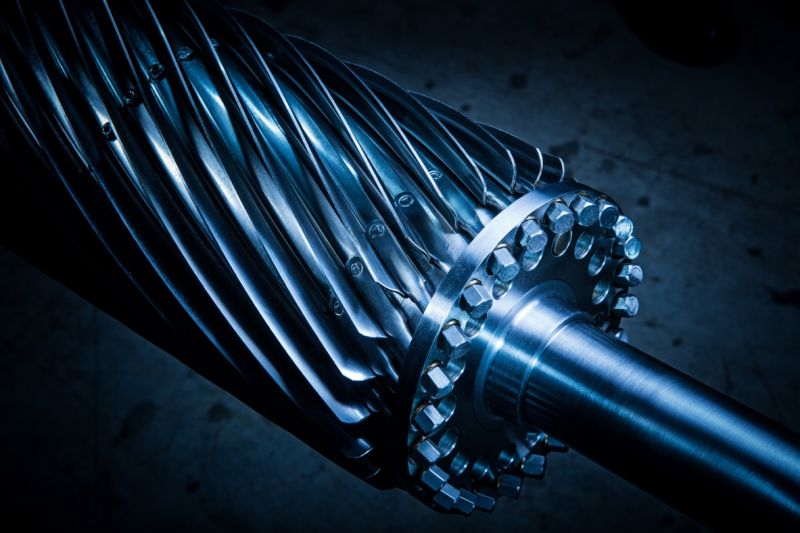

SPIRAL WITH STRETCH-SCREW AND BOLTS

Consistenly optimal cutting angle: 25°APPLICATION: for medium-heavy to heavy materials such as carpets

CAULKED SPIRAL

Constant cutting angle: 10° APPLICATION: for heavy products, fight fibres: carpets, brushes, shredder-material, special applications

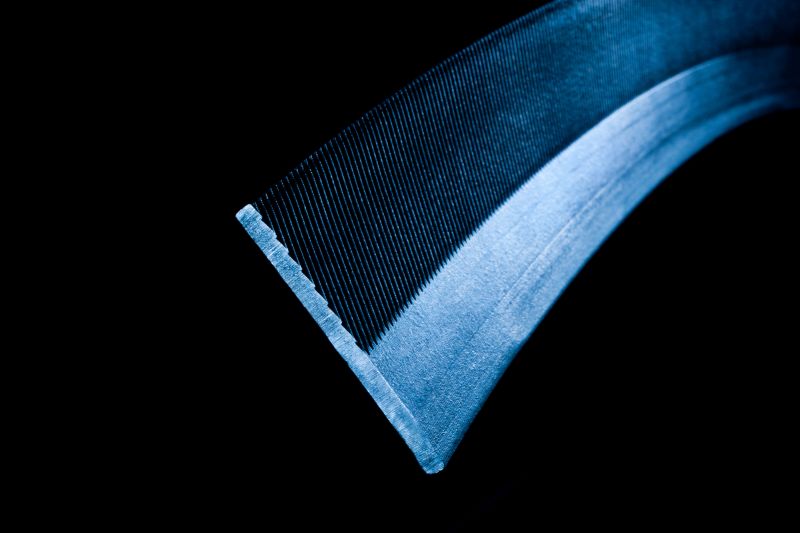

NUMBER OF FILE CUTS THICKNESS OF SPIRAL
PRODUCTS TO BE SHEARED NUMBER OF FILE CUTS PER CM BLADE THICKNESS EX WORKS IN MM
Combed yarn/carded yarn 18 1,5
Embroideries without file cut /15, 18 1,5 / 2,0
Flat woven fabric (cotton) 13 / without file cut 1,5
Plush 15 1,5
Velour 13 1,5
Circular knitting plush/fleece 13 1,5
Blankets 13 1,5
Carpets 9 / 11 2*
Fleece 13 / 18 2 / 1,5
Sisal, coconut fibre 9 / 13 2

SIRIUS* Textilspirals

The next Generation Shearing Technology

SIRIUS* spirals warrant supreme shearing results and extended service life. In contrast to the regular textile spiral SIRIUS* guarantees constant sharp cutting edge. Re-sharpening needs are substantially reduced. Applying SIRIUS* technology the ledger blades functions at whetstone.

Get SIRIUS* in 3 Types

SIRIUS* Diamond
SIRIUS* Titanium
SIRIUS* Granite

COMBINATION
FABRIC TEXTILE SPIRAL LEDGER BLADE
Polyester SIRIUS Diamond Polymant
Sisal, Coconut Fibre SIRIUS Diamond H4
Polyamide, Acrylic SIRIUS Titanium H4 (Polymant)
Cotton, Wool SIRIUS Granite H4 (HL)
Silk SIRIUS Granite H4
  • Kompatibel zu allen konventionellen Spiralen
  • Erhältlich für alle Maschinentypen und Herstellermarken
