Warping Machine


Pioneer in Textile Solutions

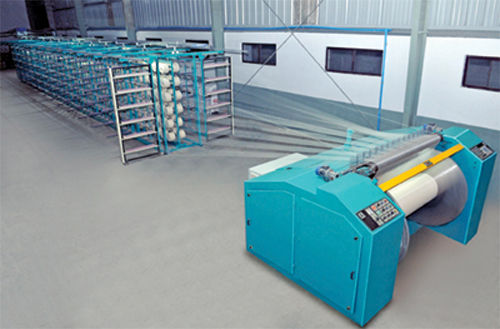

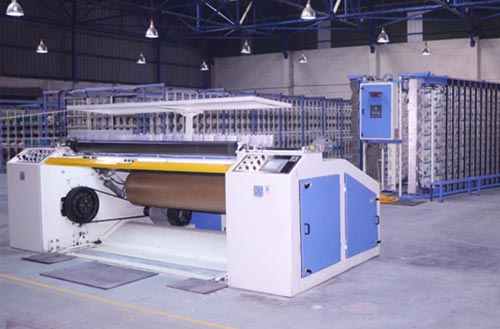

High Speed Direct Warping Machine

Technical Specifications:

Working Width 1400mm to 2400 mm
Flange Diameter 800mm to 1400mm
Max. Mechanical Speed 1200mpm
Max Warping Speed 1000mpm
Drive AC Invertors servo drive
Controls PLC base controls
Motor (KW) 15kw to 22kw

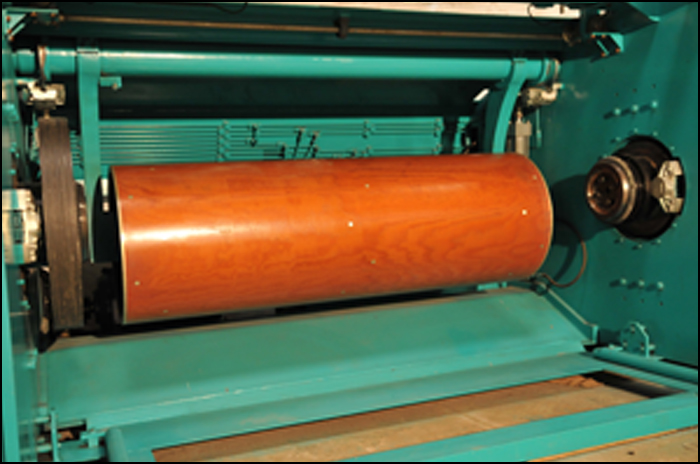

Pressure Drum Roller Rubber coated /hylum type
Brakes Quick hydraulic type

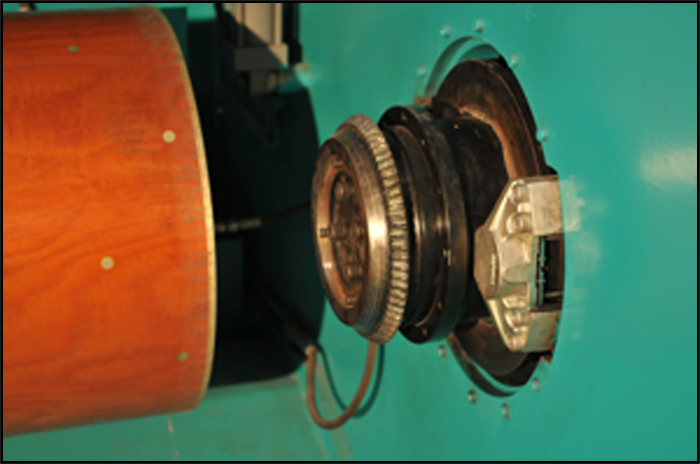

Beam Centering with Disc Brake
Kick Back Type Press Drum of Hylum Made
Measuring roll with disc Brake

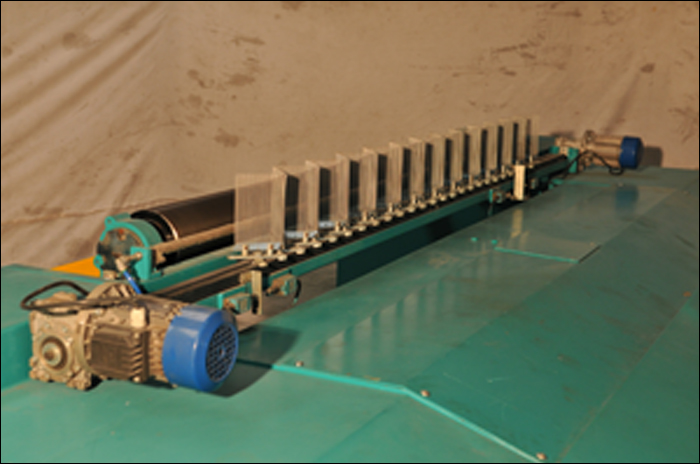

ZIG ZAG Expansion Comb
Hydraulic power pack
Seperate Electrical panel

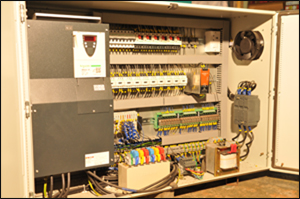

Control Panel With PLC & AC drive

Contact us on +91 75084-30311, +91 98880-31111

3V International is a global group who have been supplying Textile Machinery products around the world since 1999.
