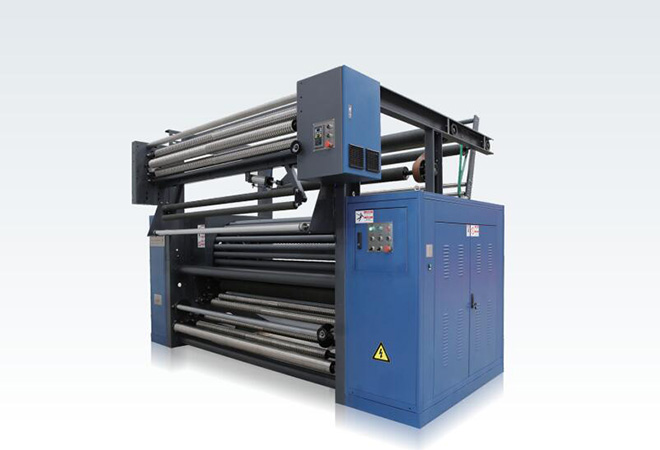

Raising Machine Gear Type

RAISING MACHINE GEAR TYPE

Technical Parameter

Raising roller width:	2000mm 2200mm
Working speed :	14.65-39.74m/mins(50Hz)
Rotary speed of cylinder:	100rpm
Diameter of raising roller(bare):	ф60mm ф62mm
Number of raising roller:	24pcs
Total power :	11kW(Main motor), 1.5kW (expanding motor), 5.5kW(suction fan, optional)
Overall Dimension (length x width x height)	3050x3840x3000mm(2000mm) 3050x4040x3000mm(2200mm))

Features

• This is the classical machine with gear driving transmission, speeds of fabric feeding, straight fillet and angle fillet are more stable, it is uniform raising tension and easy to operate.
• General electrical system with less failure, easy to maintenance.
